Clip Locking Turnbuckle Fork

Clip Locking Turnbuckles (Previously AN161)
Clip-Locking Turnbuckles utilize two locking clips instead of lock wire for safe tying. The turnbuckle barrel and terminals are slotted lengthwise to accommodate the locking clips. After the proper cable tension is reached the barrel slots are aligned with the terminal slots and the clips are inserted. The curved end of the locking clips expand and latch in the vertical slot in the center of the barrel. For use with: Clip Locking Barrels and Clips, Clip Locking Cable Eye, and Clip Locking Pin Eye

SKU: N/A Category: Aircraft Turnbuckles

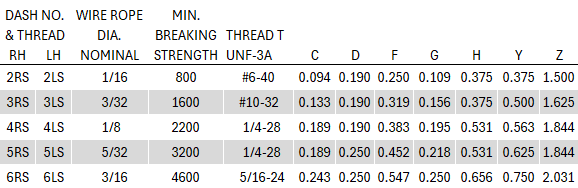

SKU	Break Strength Min	Cable Diameter 1	Thread	Sold By	Price	Buy	Cart
SKU: MS21252-2LS	Break Strength Min : 800	Cable Diameter 1 : 1/16	Thread: 6-40L	Sold By: Each	Price: $15.20	Quantity Qty in Stock: 2
SKU: MS21252-2RS	Break Strength Min : 800	Cable Diameter 1 : 1/16	Thread: 6-40	Sold By: Each	Price: $18.86	Quantity Qty in Stock: 6
SKU: MS21252-3LS	Break Strength Min : 1600	Cable Diameter 1 : 3/32	Thread: 10-32L	Sold By: Each	Price: $17.91	Quantity Qty in Stock: 8
SKU: MS21252-3RS	Break Strength Min : 1600	Cable Diameter 1 : 3/32	Thread: 10-32	Sold By: Each	Price: $17.91	Quantity Qty in Stock: 4
SKU: MS21252-4LS	Break Strength Min : 2200	Cable Diameter 1 : 1/8	Thread: 1/4-28L	Sold By: Each	Price: $22.36	Quantity Qty in Stock: 6
SKU: MS21252-4RS	Break Strength Min : 2200	Cable Diameter 1 : 1/8	Thread: 1/4-28	Sold By: Each	Price: $19.38	Quantity Qty in Stock: 9
SKU: MS21252-5LS	Break Strength Min : 3200	Cable Diameter 1 : 5/32	Thread: 5/16-24L	Sold By: Each	Price: $23.73	Quantity Qty in Stock: 20
SKU: MS21252-5RS	Break Strength Min : 3200	Cable Diameter 1 : 5/32	Thread: 5/16-24	Sold By: Each	Price: $18.90	Quantity Out of Stock
SKU: MS21252-6LS	Break Strength Min : 4600	Cable Diameter 1 : 5/32	Thread: 5/16-24L	Sold By: Each	Price: $40.05	Quantity Out of Stock
SKU: MS21252-6RS	Break Strength Min : 4600	Cable Diameter 1 : 5/32	Thread: 5/16-24	Sold By: Each	Price: $32.48	Quantity Out of Stock
