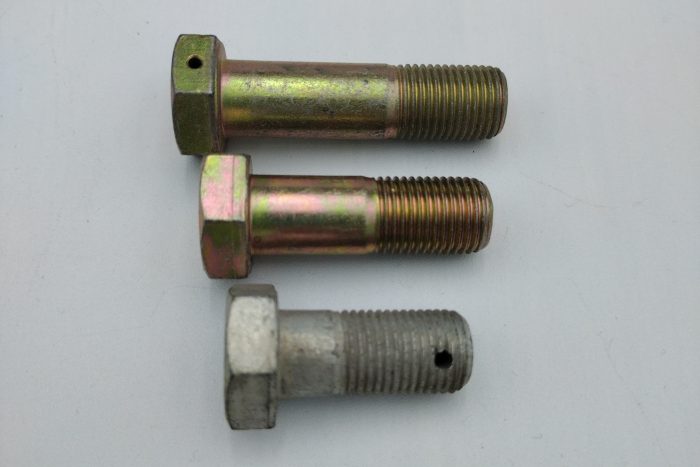

Three metal bolts are arranged horizontally on a plain background. The bolts vary slightly in color and finish. The top two are similar in size and shape, while the bottom one appears shorter. The image relates to "Bolt AN8 – 1/2" (20)".

Diagram of a Bolt AN3 – 3/16" (1032) showing labeled sections for length and grip. The bolt has a hexagonal head and a threaded end, with arrows indicating measurement points.

Bolt AN8 – 1/2″ (20)

Name: Bolt AN8 - 1/2" (20)
SKU: 2349
Availability: InStock
Rating: 5.00 (2 reviews)

Rated 5.00 out of 5 based on 2 customer ratings

Hex head airframe bolt made of alloy steel per NASM6812, cadmium finish per QQ-P-416 Type II; heat treated; rated range of 125,000-145,000 PSI, HRC 26-32

Thread: 1/2-20

Can be used with our Nuts, Washers, and Cotter, Cowl & Clevis Pins

SKU: 2349 Category: Aircraft Bolts

SKU	Length Grip	Length Nominal	Product Type	Material	Price	Buy	Cart
SKU: AN8-10	Length Grip : 5/16	Length Nominal : 1 3/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $5.91	Quantity Qty in Stock: 6	or Add to Wishlist
SKU: AN8-11	Length Grip : 7/16	Length Nominal : 1 7/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $3.22	Quantity Qty in Stock: 362	or Add to Wishlist
SKU: AN8-12	Length Grip : 9/16	Length Nominal : 1 11/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $3.33	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-13	Length Grip : 11/16	Length Nominal : 1 15/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $3.16	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-15	Length Grip : 15/16	Length Nominal : 1 23/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.01	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-16	Length Grip : 1-1/16	Length Nominal : 1 27/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.88	Quantity Qty in Stock: 9	or Add to Wishlist
SKU: AN8-17	Length Grip : 1 3/16	Length Nominal : 1 31/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $5.92	Quantity Qty in Stock: 6	or Add to Wishlist
SKU: AN8-20	Length Grip : 1 5/16	Length Nominal : 2 3/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $3.84	Quantity Qty in Stock: 4	or Add to Wishlist
SKU: AN8-21	Length Grip : 1 7/16	Length Nominal : 2 7/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.00	Quantity Qty in Stock: 22	or Add to Wishlist
SKU: AN8-22	Length Grip : 1 9/16	Length Nominal : 2 11/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.77	Quantity Qty in Stock: 8	or Add to Wishlist
SKU: AN8-23	Length Grip : 1 11/16	Length Nominal : 2 15/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.24	Quantity Qty in Stock: 10	or Add to Wishlist
SKU: AN8-24	Length Grip : 1 13/16	Length Nominal : 2 19/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.88	Quantity Qty in Stock: 18	or Add to Wishlist
SKU: AN8-25	Length Grip : 1 15/16	Length Nominal : 2 23/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.21	Quantity Qty in Stock: 5	or Add to Wishlist
SKU: AN8-26	Length Grip : 2 1/16	Length Nominal : 2 27/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $3.78	Quantity Qty in Stock: 2	or Add to Wishlist
SKU: AN8-27	Length Grip : 2 3/16	Length Nominal : 2 31/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $5.03	Quantity Qty in Stock: 4	or Add to Wishlist
SKU: AN8-30	Length Grip : 2 5/16	Length Nominal : 3 3/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $5.34	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-31	Length Grip : 2 7/16	Length Nominal : 3 7/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $3.59	Quantity Qty in Stock: 3	or Add to Wishlist
SKU: AN8-32	Length Grip : 2 9/16	Length Nominal : 3 11/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $5.25	Quantity Qty in Stock: 4	or Add to Wishlist
SKU: AN8-33	Length Grip : 2 11/16	Length Nominal : 3 15/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $9.47	Quantity Qty in Stock: 1	or Add to Wishlist
SKU: AN8-34	Length Grip : 2 13/16	Length Nominal : 3 19/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $6.03	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-35	Length Grip : 2 15/16	Length Nominal : 3 23/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.88	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-36	Length Grip : 3 1/16	Length Nominal : 3 27/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.95	Quantity Qty in Stock: 6	or Add to Wishlist
SKU: AN8-37	Length Grip : 3 3/16	Length Nominal : 3 31/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $4.10	Quantity Qty in Stock: 5	or Add to Wishlist
SKU: AN8-40	Length Grip : 3 5/16	Length Nominal : 4 3/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $17.25	Quantity Qty in Stock: 9	or Add to Wishlist
SKU: AN8-41	Length Grip : 3 7/16	Length Nominal : 4 7/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $6.20	Quantity Qty in Stock: 2	or Add to Wishlist
SKU: AN8-42	Length Grip : 3 9/16	Length Nominal : 4 9/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $8.14	Quantity Qty in Stock: 1	or Add to Wishlist
SKU: AN8-43	Length Grip : 3 11/16	Length Nominal : 4 15/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $6.29	Quantity Qty in Stock: 7	or Add to Wishlist
SKU: AN8-44	Length Grip : 3 13/16	Length Nominal : 4 19/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $7.77	Quantity Qty in Stock: 6	or Add to Wishlist
SKU: AN8-45	Length Grip : 3 15/16	Length Nominal : 4 23/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $6.58	Quantity Qty in Stock: 1	or Add to Wishlist
SKU: AN8-47	Length Grip : 4 3/16	Length Nominal : 4 31/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $9.45	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-50	Length Grip : 4 5/16	Length Nominal : 5 3/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $18.33	Quantity Qty in Stock: 1	or Add to Wishlist
SKU: AN8-60	Length Grip : 5 5/16	Length Nominal : 6 3/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $25.10	Quantity Qty in Stock: 6	or Add to Wishlist
SKU: AN8-64	Length Grip : 5 13/16	Length Nominal : 6 19/32	Product Type: Drilled Shank	Material: Cad Plated	Price: $22.26	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-11A	Length Grip : 7/16	Length Nominal : 1 7/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $3.32	Quantity Qty in Stock: 10	or Add to Wishlist
SKU: AN8-13A	Length Grip : 11/16	Length Nominal : 1 15/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $2.21	Quantity Qty in Stock: 2	or Add to Wishlist
SKU: AN8-14A	Length Grip : 13/16	Length Nominal : 1 19/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $1.92	Quantity Qty in Stock: 4	or Add to Wishlist
SKU: AN8-15A	Length Grip : 15/16	Length Nominal : 1 23/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $2.33	Quantity Qty in Stock: 2	or Add to Wishlist
SKU: AN8-16A	Length Grip : 1-1/16	Length Nominal : 1 27/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $4.39	Quantity Qty in Stock: 6	or Add to Wishlist
SKU: AN8-17A	Length Grip : 1 3/16	Length Nominal : 1 31/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $2.93	Quantity Qty in Stock: 10	or Add to Wishlist
SKU: AN8-20A	Length Grip : 1 5/16	Length Nominal : 2 3/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $3.28	Quantity Qty in Stock: 5	or Add to Wishlist
SKU: AN8-21A	Length Grip : 1 7/16	Length Nominal : 2 7/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $2.58	Quantity Qty in Stock: 8	or Add to Wishlist
SKU: AN8-22A	Length Grip : 1 9/16	Length Nominal : 2 11/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $2.48	Quantity Qty in Stock: 6	or Add to Wishlist
SKU: AN8-23A	Length Grip : 1 11/16	Length Nominal : 2 15/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $3.66	Quantity Qty in Stock: 9	or Add to Wishlist
SKU: AN8-24A	Length Grip : 1 13/16	Length Nominal : 2 19/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $4.53	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-25A	Length Grip : 1 15/16	Length Nominal : 2 23/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $4.02	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-26A	Length Grip : 2 1/16	Length Nominal : 2 27/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $4.42	Quantity Qty in Stock: 20	or Add to Wishlist
SKU: AN8-27A	Length Grip : 2 3/16	Length Nominal : 2 31/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $3.10	Quantity Qty in Stock: 8	or Add to Wishlist
SKU: AN8-30A	Length Grip : 2 5/16	Length Nominal : 3 3/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $3.50	Quantity Qty in Stock: 1	or Add to Wishlist
SKU: AN8-31A	Length Grip : 2 7/16	Length Nominal : 3 7/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $4.01	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-32A	Length Grip : 2 9/16	Length Nominal : 3 11/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $4.02	Quantity Qty in Stock: 12	or Add to Wishlist
SKU: AN8-33A	Length Grip : 2 11/16	Length Nominal : 3 15/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $4.01	Quantity Qty in Stock: 3	or Add to Wishlist
SKU: AN8-34A	Length Grip : 2 13/16	Length Nominal : 3 19/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $4.27	Quantity Qty in Stock: 8	or Add to Wishlist
SKU: AN8-36A	Length Grip : 3 1/16	Length Nominal : 3 27/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $3.59	Quantity Qty in Stock: 13	or Add to Wishlist
SKU: AN8-37A	Length Grip : 3 3/16	Length Nominal : 3 31/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $4.31	Quantity Qty in Stock: 17	or Add to Wishlist
SKU: AN8-40A	Length Grip : 3 5/16	Length Nominal : 4 3/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $8.98	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-41A	Length Grip : 3 7/16	Length Nominal : 4 7/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $5.01	Quantity Qty in Stock: 3	or Add to Wishlist
SKU: AN8-42A	Length Grip : 3 9/16	Length Nominal : 4 9/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $9.32	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-43A	Length Grip : 3 11/16	Length Nominal : 4 15/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $8.97	Quantity Qty in Stock: 15	or Add to Wishlist
SKU: AN8-44A	Length Grip : 3 13/16	Length Nominal : 4 19/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $7.43	Quantity Qty in Stock: 3	or Add to Wishlist
SKU: AN8-45A	Length Grip : 3 15/16	Length Nominal : 4 23/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $5.03	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-46A	Length Grip : 4 1/16	Length Nominal : 4 27/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $8.07	Quantity Qty in Stock: 1	or Add to Wishlist
SKU: AN8-47A	Length Grip : 4 3/16	Length Nominal : 4 31/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $6.91	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-50A	Length Grip : 4 5/16	Length Nominal : 5 3/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $18.07	Quantity Qty in Stock: 8	or Add to Wishlist
SKU: AN8-51A	Length Grip : 4 7/16	Length Nominal : 5 7/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $18.54	Quantity Out of Stock	or Add to Wishlist
SKU: AN8-52A	Length Grip : 4 9/16	Length Nominal : 5 11/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $16.29	Quantity Qty in Stock: 6	or Add to Wishlist
SKU: AN8-53A	Length Grip : 4 11/16	Length Nominal : 5 15/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $25.31	Quantity Qty in Stock: 2	or Add to Wishlist
SKU: AN8-56A	Length Grip : 5 1/16	Length Nominal : 5 27/32	Product Type: Undrilled Shank	Material: Cad Plated	Price: $23.10	Quantity Qty in Stock: 1	or Add to Wishlist
SKU: AN8H-12A	Length Grip : 9/16	Length Nominal : 1 11/32	Product Type: Drilled Head Only	Material: Cad Plated	Price: $6.03	Quantity Qty in Stock: 4	or Add to Wishlist
SKU: AN8H-15A	Length Grip : 15/16	Length Nominal : 1 23/32	Product Type: Drilled Head Only	Material: Cad Plated	Price: $3.76	Quantity Qty in Stock: 10	or Add to Wishlist
SKU: AN8H-16A	Length Grip : 1-1/16	Length Nominal : 1 27/32	Product Type: Drilled Head Only	Material: Cad Plated	Price: $3.44	Quantity Qty in Stock: 7	or Add to Wishlist

Reviews (2)
Questions & Answers

2 reviews for Bolt AN8 – 1/2″ (20)

5.0

Based on 2 reviews

5 star	100	100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

1-2 of 2 reviews

Brent
Verified owner
November 14, 2024
Rated 5 out of 5
Verified review - view original
(0) (0)
Eugene Fogle
Verified owner
July 30, 2024
Rated 5 out of 5
Verified review - view original
(0) (0)

Add a review

Currently, we are not accepting new reviews

Q & A

Note: Wicks personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon wihout consulting a qualified technician. Wicks assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

What size cotter pins are used on AN8 drilled bolts? Steve W asked on March 8, 2024

3/32"

Keith Gibbs answered on March 8, 2024 store manager
