BB-MU2- LIGHT WEIGHT ALUMINUM BATTERY BOX

Out of Stock

$89.00

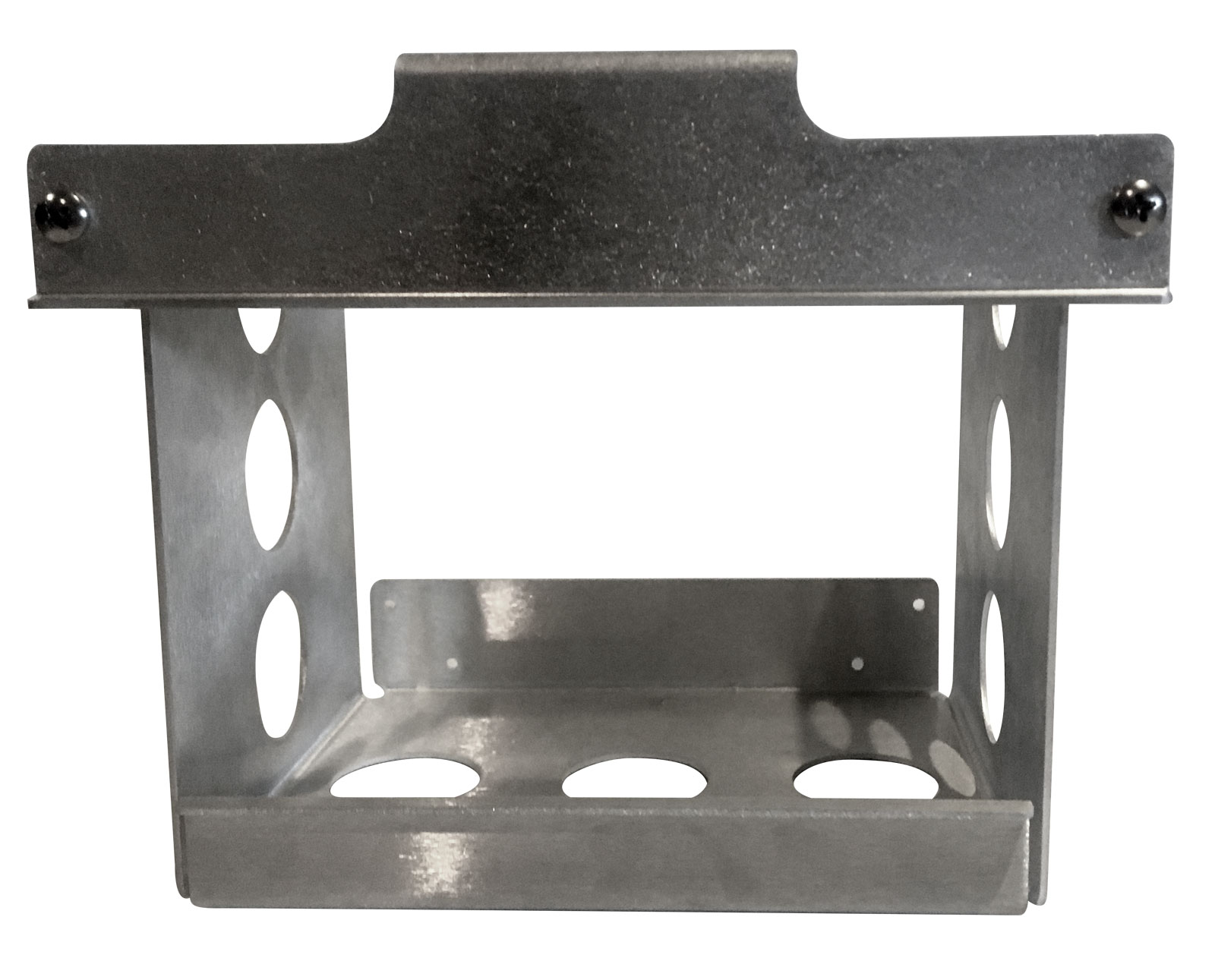

The  light weight aluminum battery box is excellent to use with the EarthX lithium “E” case batteries for easy installation!

Super easy installation and use of this newly revised and improved battery box! It has a bolt-down tab for easy removal of the battery from the front or top, and is acrobat rated (even with PC680 ).

This battery box can be used with:

  • ETX680
  • ETX900
  • ETX900-VNT
  • ETX1200
  • Odyssey’s PC 680
SKU: BB-MU2 Category:

Description

If you are using the battery box for the EarthX Lithium batteries, you will use a foam spacer on the left and right side of the battery for a snug fit. If you are using the battery box for the PC680, you will use the foam spacer on the backside at the bottom of the case to adjust for the tapering of the case for a snug fit. That easy!

This battery box was engineered to be strong enough to withstand 30 G of force for the EarthX Lithium Batteries or  6G of upward force and 9G of downward force with the PC680.  It only weighs 8.6 ounces or 244 grams. This unique design allows for simple, easy installation with the dimensions: 7.1″ L x 3.1″ W x 6.5-6.6″ (adjustable height) or (180mm x 80mm 166-168mm).

ETX Battery Box Installation Guide

Overview

This document provides recommended guidelines for the installation of EarthX battery boxes.

Number of Required Fasteners

The table below shows the recommended number of fasteners to be used when securing the battery box to a vertical surface, like the engine firewall. The number of fasteners is based on ASTM 2245 6g upward force, plus a 1.5X safety factor (9g downward or upward). The battery weight used in the calculation was the ETX900 (4.9lb).

The material the box is fastened to should be of equal or greater strength than that of the battery box (14ga aluminum or 22ga stainless steel).

Fastener Type Quantity (minimum, total)
1/8” rivet 4
10-32 screw 4
¼-20 screw 4

Fastener Location

Ideally, the fasteners should be located at the four corners (blue dots) as shown below. Based on the build of the aircraft or battery location it may not be possible to locate fasteners uniformly at the corners or in all the pre-drilled holes provided on the battery box. All that is required is to install a fastener on the top 1/3 length of the support tab and another on the lower 1/3 as shown below. Additionally, the fastener hole should be located at least 1-hole-diameter from the edge of the support tab.
