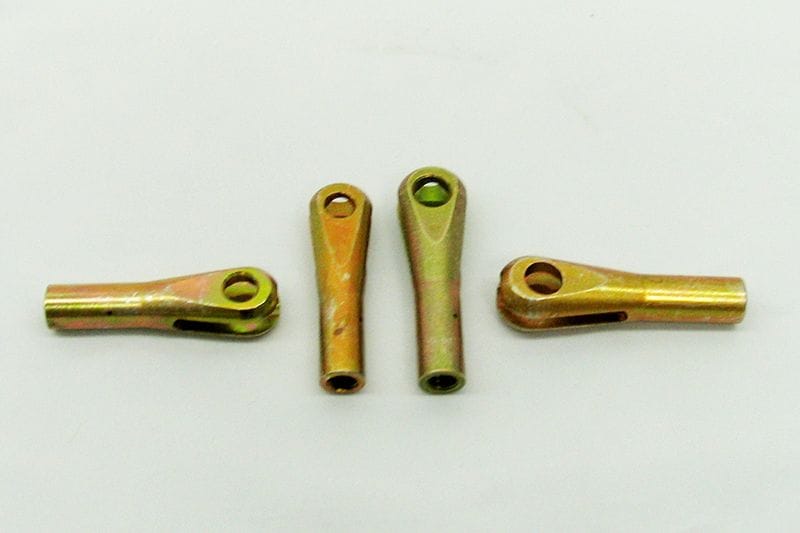

Four brass-colored metal rod ends with holes, arranged on a light background.

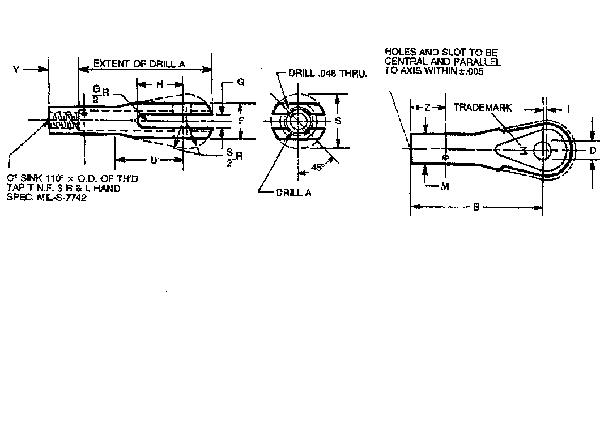

Technical diagram showing dimensions and specifications for AN665 Tie Rod Terminals. Includes side and top views with detailed measurements and notes for manufacturing and assembly.

AN665 Tie Rod Terminals

SKU: 1178 Category:
SKUBDiameter MDiameter SDrill AFGHIRated Tie Rod StrengthSold ByTap TUWidthYZPriceBuyCart
SKU: AN665-10L		B : 1.313Diameter M : 0.250Diameter S : 0.375Drill A : 0.147F : 0.250G : 0.109H : 0.375I : 0.031Rated Tie Rod Strength: 1200Sold By: EachTap T: 6-40U : 0.625Width : 0.19Y : 0.250Z : 0.250Price: $14.93
Quantity
Qty in Stock: 112 		or Add to Wishlist
SKU: AN665-10R		B : 1.313Diameter M : 0.250Diameter S : 0.375Drill A : 0.147F : 0.250G : 0.109H : 0.375I : 0.031Rated Tie Rod Strength: 1200Sold By: EachTap T: 6-40U : 0.625Width : 0.19Y : 0.250Z : 0.250Price: $14.93
Quantity
Qty in Stock: 12 		or Add to Wishlist
SKU: AN665-21L		B : 1.531Diameter M : 0.281Diameter S : 0.500Drill A : 0.199F : 0.313G : 0.150H : 0.469I : 0.031Rated Tie Rod Strength: 2400Sold By: EachTap T: 10-32U : 0.719Width : 0.19Y : 0.313Z : 0.375Price: $19.41
Quantity
Qty in Stock: 6 		or Add to Wishlist
SKU: AN665-21R		B : 1.531Diameter M : 0.281Diameter S : 0.500Drill A : 0.199F : 0.313G : 0.150H : 0.469I : 0.031Rated Tie Rod Strength: 2400Sold By: EachTap T: 10-32U : 0.719Width : 0.19Y : 0.313Z : 0.375Price: $19.53
Quantity
Qty in Stock: 3 		or Add to Wishlist
SKU: AN665-34L		B : 1.813Diameter M : 0.375Diameter S : 0.625Drill A : 0.261F : 0.438G : 0.203H : 0.625I : 0.047Rated Tie Rod Strength: 4200Sold By: EachTap T: 1/4-28U : 0.875Width : 0.25Y : 0.438Z : 0.500Price: $34.37
Quantity
Qty in Stock: 31 		or Add to Wishlist
SKU: AN665-34R		B : 1.813Diameter M : 0.375Diameter S : 0.625Drill A : 0.261F : 0.438G : 0.203H : 0.625I : 0.047Rated Tie Rod Strength: 4200Sold By: EachTap T: 1/4-28U : 0.875Width : 0.25Y : 0.438Z : 0.500Price: $34.37
Quantity
Qty in Stock: 77 		or Add to Wishlist
SKU: AN665-46L		B : 1.875Diameter M : 0.438Diameter S : 0.688Drill A : 0.323F : 0.500G : 0.203H : 0.656I : 0.047Rated Tie Rod Strength: 4600Sold By: EachTap T: 5/16-24U : 0.938Width : 0.313Y : 0.563Z : 0.625Price: $18.32
Quantity
Qty in Stock: 2 		or Add to Wishlist
SKU: AN665-46R		B : 1.875Diameter M : 0.438Diameter S : 0.688Drill A : 0.323F : 0.500G : 0.203H : 0.656I : 0.047Rated Tie Rod Strength: 4600Sold By: EachTap T: 5/16-24U : 0.938Width : 0.313Y : 0.563Z : 0.625Price: $29.41
Quantity
Qty in Stock: 2 		or Add to Wishlist
SKU: AN665-61L		B : 2.000Diameter M : 0.453Diameter S : 0.750Drill A : 0.323F : 0.563G : 0.203H : 0.844I : 0.063Rated Tie Rod Strength: 6900Sold By: EachTap T: 5/16-24U : 1Width : 0.375Y : 0.563Z : 0.625Price: $52.96
Quantity
Qty in Stock: 1 		or Add to Wishlist
SKU: AN665-61R		B : 2.000Diameter M : 0.453Diameter S : 0.750Drill A : 0.323F : 0.563G : 0.203H : 0.844I : 0.063Rated Tie Rod Strength: 6900Sold By: EachTap T: 5/16-24U : 1Width : 0.375Y : 0.563Z : 0.625Price: $61.41
Quantity
Qty in Stock: 2 		or Add to Wishlist
SKU: AN665-80LA		B : 2.2500Diameter M : 0.547Diameter S : 0.875Drill A : 0.386F : 0.625G : 0.266H : 0.875I : 0.063Rated Tie Rod Strength: 10000Sold By: EachTap T: 3/8-24U : 1.125Width : 0.375Y : 0.688Z : 0.750Price: $60.44
Quantity
Out of Stock
 or Add to Wishlist
SKU: AN665-80RA		B : 2.2500Diameter M : 0.547Diameter S : 0.875Drill A : 0.386F : 0.625G : 0.266H : 0.875I : 0.063Rated Tie Rod Strength: 10000Sold By: EachTap T: 3/8-24U : 1.125Width : 0.375Y : 0.688Z : 0.750Price: $73.10
Quantity
Out of Stock
 or Add to Wishlist
