Red Box 737-3X Rivet Gun Kit for Solid Rivets

In Stock


  • For aluminum rivets only
  • 3x Rivet Gun (Teasing Trigger, 3/16″ Aluminum Rivet Capacity)
  • 3 1/2″ Straight Rivet Sets (3/32″, 1/8″, 5/32″, and 3/16″) & 1″ Face Flush Set – .401 Shank
  • #670 and #638 Bucking Bars
  • Quick-change & Beehive Rivet Gun Retaining Springs
  • Click Style Brass Air Regulator, Air Tool Oil, and Storage Case
SKU: RED BOX 737-3X Categories: ,

1 in stock


Wicks Aircraft and Motorsports’ 3X Rivet Gun Kit is a complete set of everything you need to get started with solid rivet installation.

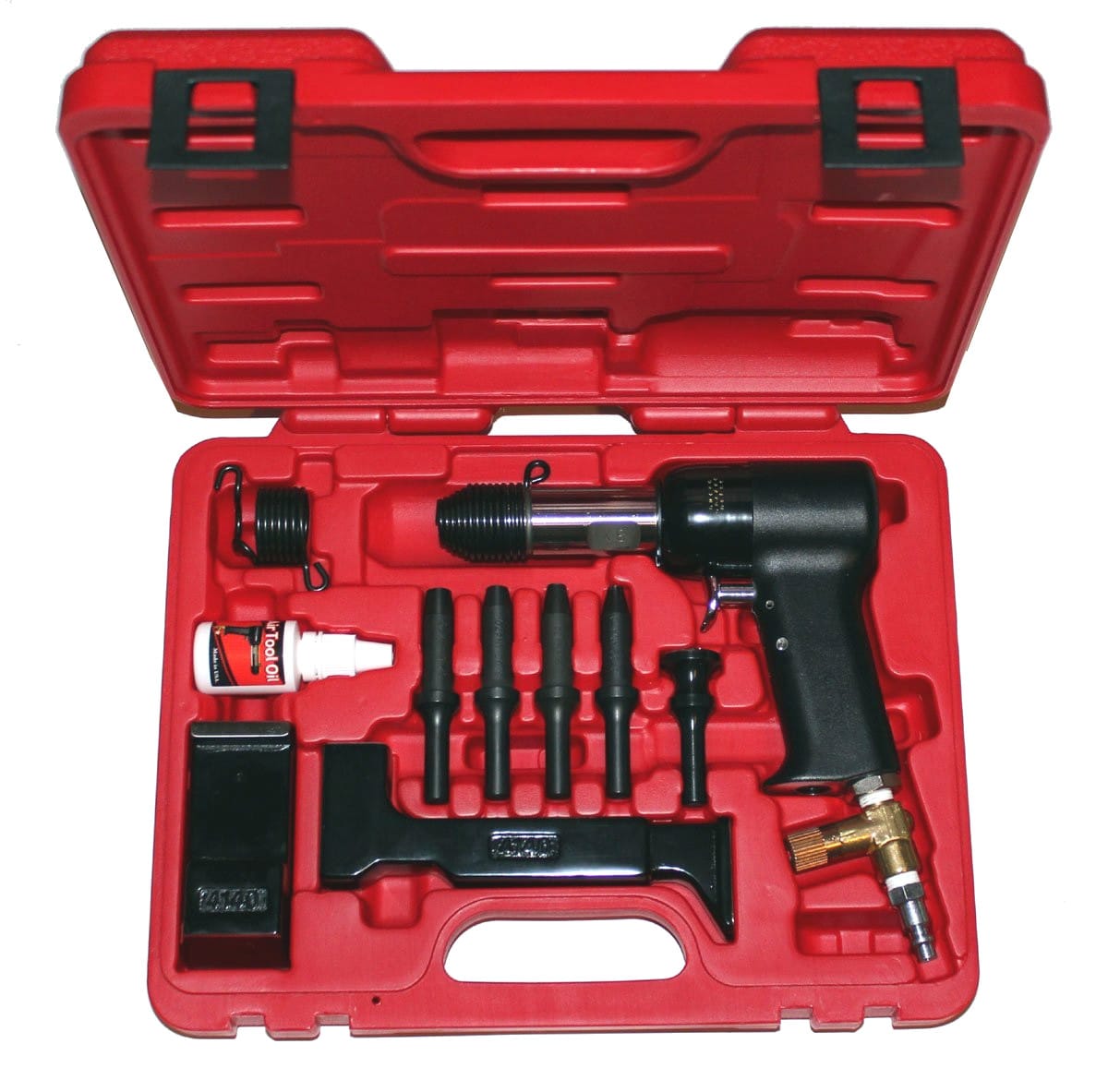

This Wicks Aircraft 737-3X Rivet Gun Kit includes a 3X Pneumatic Rivet Gun, with a pressure regulator and quick release, ideal for most solid rivets. Also included are two of the most commonly used bucking bars, 5 rivet sets, two retainer springs (including standard and beehive), air tool oil, and a rugged case.

Quickly and efficiently drive solid rivets using the included bucking bars and accessories.

Included in the kit are a 1.25 Lb and 2 Lb bucking bar. See the pictures below for dimensions.

Included are solid steel bucking bars. Great for bucking rivets for aircraft, automotive, Airstream restoration, and many other projects. Works with all solid rivets. Including universal, countersunk, and brazier head rivets.

Included bucking bars.

2 Lb bucking bar.

1.25 Lb bucking bar.

Close Up of Bee Hive with Set

Adjustable Pressure Gauge

1/4″ Quick Disconnect

Beehive Retaining Spring

Standard Retaining Spring


Solid rivets are sold in both hard and soft aluminum and feature universal and countersunk heads. Many other designs are also available from various suppliers and manufactures. Wicks Aircraft offers rivets in both individual packs and in kits.

The included rivet sets.

Feature highly polished heads.

The rivet set includes highly polished heads to prevent marring on the rivet head. Helping to provide a clean look to your finished project. These rivet sets are intended for mainly universal and flush rivets. If using a rivet with a different type of head check the fit and make a sample piece before starting your project.

This rivet gun kit includes a selection of 5 quality rivet sets.

The 5 rivet sets included with this kit are 3 1/2″ long and feature a standard .401 shank. For holding the rivet sets in place the kit includes a quick release spring and a “beehive” retaining spring. Note: the flush rivet set will not work in the “beehive” retainer. When switching retaining springs, apply force to the back of the spring to unscrew the spring and apply force the the front of the spring to screw it on. Other rivet sets are available in a selection of lengths and angles.

  • The Wicks Aircraft 3X Rivet Gun Kit includes 5 rivet sets.
  • The sets are 3 1/2″ long and feature a standard .401 shank
  • The 5 sets are made to fit 3/32″, 1/8″, 5/32″, and 3/16″ rivet heads and 1 set for flush heads.
  • Sets are made from high strength steel.

Q & A

Note: Wicks personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon wihout consulting a qualified technician. Wicks assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Do you sell the parts separately that come in the Red Box? Joe H asked on March 8, 2024

We offer the bucking bars as well as the rivet sets separately.

Eric Cleveland answered on March 8, 2024 store manager
