Introducing the XTreme EFIS…

What is it?
The XTreme EFIS is an affordable mini EFIS. It can be configured as a PFD (with AHRS sensors added), and/or an engine monitor (with RDAC added). It includes a GPS receiver that is used to provide ground speed and range information, a basic CDI navigator, and as a backup/control for the AHRS. If you do not select the SP-7 attitude sensor, you can still have a GPS-derived bank angle display!


You can use it as…

  • Primary EFIS
  • Backup EFIS
  • Engine Monitor
  • EFIS/Engine Monitor
  • Basic GPS Navigator with CDI (no moving map)
  • 2-Axis Autopilot

Some might use it for just 1 function, or you could use all functions!

Note: You can share the AHRS sensor data between several XTreme EFIS units, and you can share the RDAC engine data between several XTreme EFIS units or a mixture of XTreme EFIS units and XTreme EMS units. With the XTreme EMS you can add a 2nd display for engine-only at little expense!

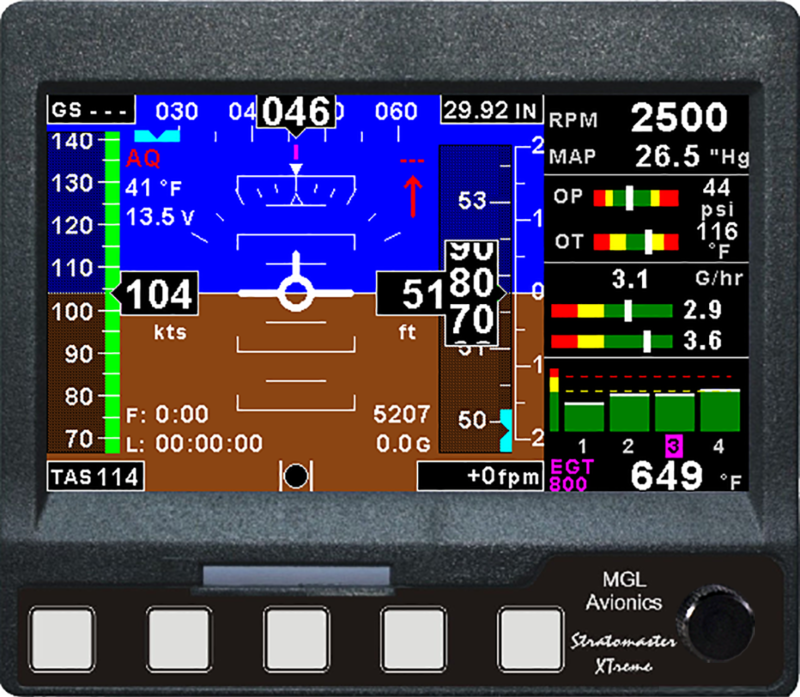

The XTreme EFIS is a mini-EFIS unit based on a 4.3″ sunlight readable, wide viewing angle, high resolution LCD display. It integrates an SD card reader (for software updates and for flight data recorder), 5 function buttons, a rotary control and a basic GPS navigator.

It can be connected to standard MGL Avionics AHRS sensors and RDAC (engine monitor) boxes. It also integrates a CAN Aerospace compatible communications interface that will be used with future versions of MGL Avionics sensors. Standard RS-232 ports are also available.

The XTreme is designed to fit a standard 3 1/8″ round instrument hole. The body is located off-center allowing the unit to replace instruments on the right side of a standard 6-pack configuration or any other location that currently occupies two instruments.

Due to the light weight and very low mounting depth no complicated mounting brackets or trays are needed. Power use is low and operation from much less than 12V to around 28V is fully supported.




XTreme EFIS Features:


  • Powerful ARM processor
  • 4.3” high resolution 480×272, sunlight readable, wide viewing angle, 600 nits TFT LCD display
  • LED backlight (brightness can be adjusted for low light flying conditions)
  • Fits standard 3 1/8” aircraft instrument panel hole
  • SD Card interface for data recording, user splash screens, checklists, graphic information pages, firmware upgrades etc
  • 1/8” NPT female fittings for Altitude and Airspeed pitot tube connections
  • 1x RS232 communication port
  • 1x MGL Avionics Airtalk communication port
  • 1x MGL Avionics RDAC communications port
  • 1x CAN communication port
  • Rotary control plus 5 independent buttons for easy menu navigation and user input
  • External alarm switch output for an external indicator lamp etc
  • Built in 50 Channel GPS receiver with over 1 million effective correlators with high immunity to jamming
  • Time To First Fix (TTFF) of less than 1 second
  • External active GPS antenna connection
  • Support for an internal or an external GPS receiver
  • Built in RTC (Real Time Clock)
  • Wide input supply voltage range of 8 to 30V DC
  • Built in voltage reversal and over voltage protection for harsh electrical environments
  • Light weight design


  • Attitude display. (Note 1)
  • Magnetic heading indication. (Note 2)
  • GPS-derived bank angle if no Attitude sensor
  • Heading bug
  • Precision altimeter from –1000ft up to a maximum of 30 000ft (-304m to 9144m). Altitude can be displayed in ft or m
  • Altitude bug
  • Airspeed indicator (16mph to 250mph), 1mph resolution. Airspeed can be displayed in mph, km/h or kts
  • Digital VSI indicator (+/-20 ft/min to +/-10 000 ft/min) and analog VSI indicator (+-2000 ft/min range). VSI can be displayed in ft/min or m/s.
  • Serial Altitude encoder output via a RS232 port
  • Density altimeter
  • OAT (Outside Air Temperature) display using an external OAT probe
  • Supply Voltage display
  • Stopwatch timer
  • Automatic flight timer
  • RTC (Real Time Clock)
  • Glide and climb ratio indicator
  • Barometer (actual local pressure)
  • TAS (True airspeed) display
  • G-Force indication. (Note 1)
  • Wind speed and wind direction indication. (Note 2)
  • Turn Indicator. (Note 1)
  • Slip/Skid indicator. (Note 1)

Engine Monitor: (Note 3)

  • 1x Engine RPM
  • 1x Rotor RPM (Note 5)
  • 1x Manifold pressure (Note 6)
  • 1x Oil pressure input
  • 1x Oil temperature input
  • 2x Auxiliary analog channels (Pressure/Temperature/Current)
  • 12 Channel EGT/CHT display
  • 2x Fuel Flow
  • 2x Fuel Level
  • Programmable maintenance timer for scheduled routine engine maintenance
  • Engine display screens are automatically configured to optimize screen space depending on what
  • parameters are been displayed
  • Settable Hobbs meter (password protected)
  • Fuel range / endurance based on TAS or GPS ground speed
  • Supply Voltage display
  • Current monitor to measure charge/discharge currents. (Note 4)
  • Engine leaning feature


  • Alarms on most displays
  • Programmable maintenance timer for scheduled routine engine maintenance
  • Programmable airframe timer for scheduled airframe maintenance.
  • Records maximum and minimum values of most displayed values
  • Built in black box recorder – records all flight data, engine, attitude and GPS data to SD card. Data can be exported to Google Earth, Microsoft Excel, etc.
  • Includes a 1000 entry automatic flight log (Records start date&time, flight time, pilot number, Hobbs time, maintenance time, max altitude, airspeed and VSI reached during the flight)
  • User configurable start up (Splash) screen
  • Unlimited configurable checklists
  • Unlimited configurable graphic information displays
  • Automatic or manual local magnetic variation
  • Dual menu system for quick item selection and user setups
  • Sunrise/Sunset calculator
  • Firmware upgrades via SD Card
  • 3 year limited warranty (MGL Avionics US)

(Note 1) Requires optional MGL Avionics AHRS sensor unit (SP-7/SP-5)

(Note 2) Requires optional MGL Avionics compass sensor unit (SP-6)

(Note 3) Requires optional MGL Avionics RDAC unit

(Note 4) Requires optional MGL Avionics current monitor sensor

(Note 5) Requires RDAC with Rotor RPM input

(Note 6) Requires RDAC with Manifold Pressure
